Thin Stone Wall Systems

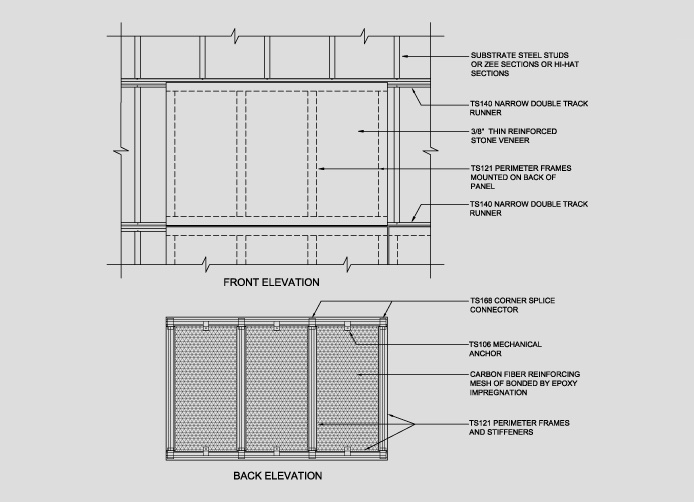

Typical Wall Panel

Details illustrate construction of a typical wall panel with TS121 Perimeter Frames and TS121 Intermediate Stiffeners are interlocked at their intersections by TS168 Corner Splice Connector designed to allow slip movement. The Wall Panel rides in the continuous sockets of the TS140 Narrow Double Track Runner. This allows some compensation for possible movement due to temperature differentials, seismic forces, or building sway due to high windloads.

Download Detail: DWG | PDF

TS121 Perimeter Frame

The TS121 is the basic perimeter frame, horizontal and vertical, as well as intermediate stiffeners when required for larger size panels. Panel dimensions can be as large as 4′ x 8′.

Download Detail: DWG | PDF

TS122 Light Frame

The TS122 Light Frame is used at the top and bottom panel frames when the double track runners are used. See Detail 07. The verticals and intermediate stiffener, if necessary, are usually TS121 Perimeter Frame.

Download Detail: DWG | PDF

TS106 Mechanical Anchor

Some building codes require a mechanical connection between the stone veneer panel and the building structure. The TS106 Mechanical Anchor makes a bridge connection between the TS121 Perimeter Frame and a self-locking wedge type of expansion anchor which is shop-inserted into a prepared hole in the back of the fascia panel. When properly installed, this self-locking anchor insert produces a substantial pull-out value which varies with the physical characteristics of the particular type of stone involved.

Download Detail: DWG | PDF

TS168 Corner Splice Connector

The TS168 Corner Splice Connector makes a structural slip connection at corners between two (2) intersecting frames. The slip-connector allows some movement in both directions to compensate for possible movement in the panel due to temperature differentials, seismic forces, or high windloads.

Download Detail: DWG | PDF

TS137 Base Runner & TS149 Top Runner

Download Detail: DWG | PDF

TS140 Narrow Double Track Runner

The TS140 Double Track Runner is used to support the top and bottom of adjacent panels. The panels have the TS122 frame at the top and bottom of each panel. The verticals are usually TS121. This is economical since it requires only one piece of track for each panel. It is shaped to automatically create 1/2″ joint. If a 3/8″ joint is required, the extrusion will be set back 1/16″ from each panel edge thus closing the gap by 1/8″ creating a 3/8″ joint.

Download Detail: DWG | PDF

TS136 Narrow Interlocking Runner

The TS138 runner is compatible with TS137, TS149, TS140, and TS129. The overall depth is 2″.

Download Detail: DWG | PDF

TS179 Wide Interlocking Channel

This extrusion is usually used on larger exterior panels and is compatible with TS192 Double Track Runner. The overall wall depth is 2 3/8″. A shim space of 1/8″ is recommended.

Download Detail: DWG | PDF

TS192 Wide Double Track Runner

The TS192 is compatible with TS179 Wide Interlocking Channel. The overall wall depth is 2 3/8″. A shim space of 1/8″ is recommended.

Download Detail: DWG | PDF

TS154 Rain-Drip and Quirk Miter Corners

The TS154 extrusion is used to control the intersection of panels at a corner. The quirk miter can be vertical or horizontal, and the rain-drip horizontal.

Download Detail: DWG | PDF

TS129 Progressive Clip with 1/2″ Joint

The TS129 Progressive Clip is pre-attached to the top frame of a panel and provides the means of a screw attachment to the substrate. It also provides a socket to receive and carry the next panel above and automatically fixes the joint width of 1/2″. If a 3/8″ joint is required, the extrusion is set back 1/16″ from the top and bottom panel edges which closes the gap between panels to 3/8″. This allows the installer to work progressively upward instead of installing all the horizontal runners than the panels. The TS129 is compatible with TS138 and TS140.

Download Detail: DWG | PDF

TS153 Out-Corner with 1 3/4″ Return

Download Detail: DWG | PDF

TS190 Out-Corner with 3″ Return

This detail is similar to TS153 except that the return is 3″.

Download Detail: DWG | PDF

TS124 Out-Corner 4 5/8″ Return

TS124 can be used as a jamb or soffit detail when a larger return is needed.

Download Detail: DWG | PDF

TS167 Deep Perimeter Frame

The deeper frame allows the joints to be double caulked and is particularly useful in high-rise projects where water penetration is critical. The deeper frame is also stronger and allows greater spans to be engineered.

Download Detail: DWG | PDF

TS141 Sloping Sills – 3″ & 4″ Returns

The TS141 extrusion is used for both 3″ and 4″ returns.

Download Detail: DWG | PDF
